Product Introduction

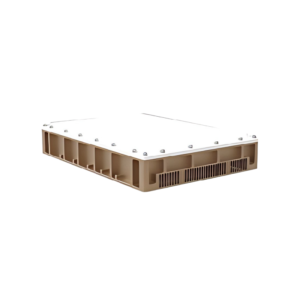

◆Function: The antenna consists of an radome, antenna array assembly, beam control power board, and heat dissipation assembly, and has the following functions:

1. Working Mode Switching: Continuous receiving, pulse transmitting, and pulse receiving/receiving switching;
2. Transmit power amplification and spatial power synthesis, low-noise receiving amplification;
3. Working status reporting, temperature and current monitoring;
4. Combined with the rear compartment, it can achieve IP67 dust and water resistance, and the cooling fan has IP68 dust and water resistance;
5. Adaptive fan speed.

◆Features: High integration, lightweight, high performance, and high reliability.

◆Applications: Widely used in anti-radar and other platforms.

Performance Indicators
